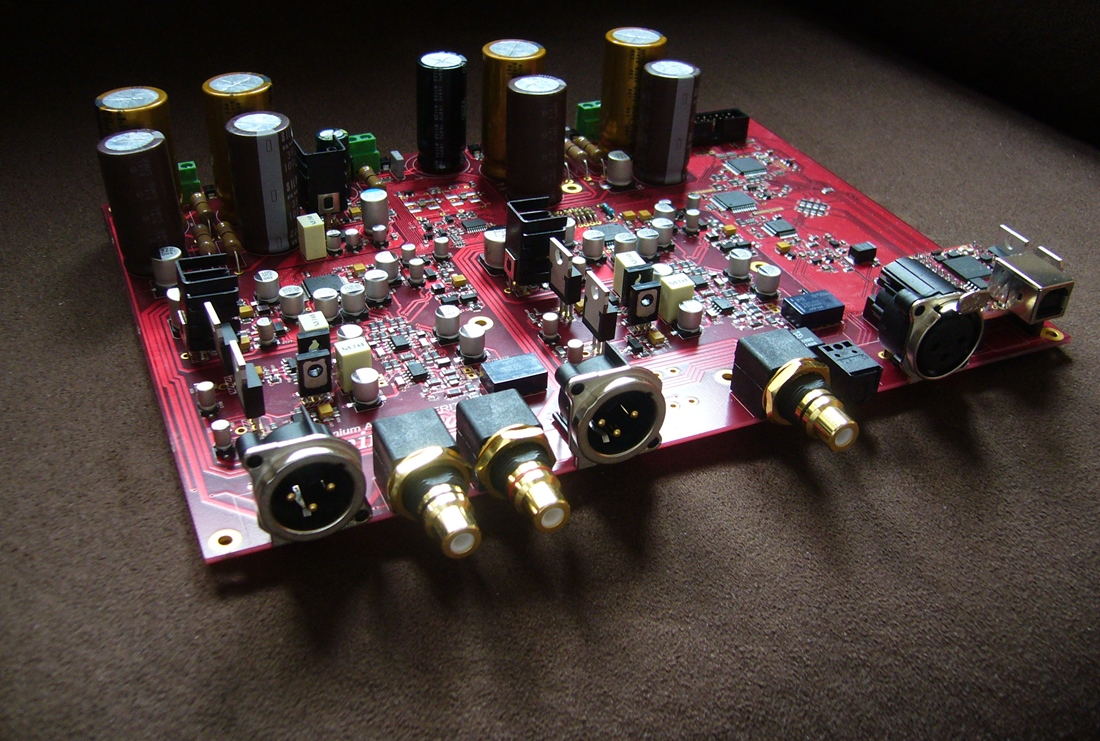

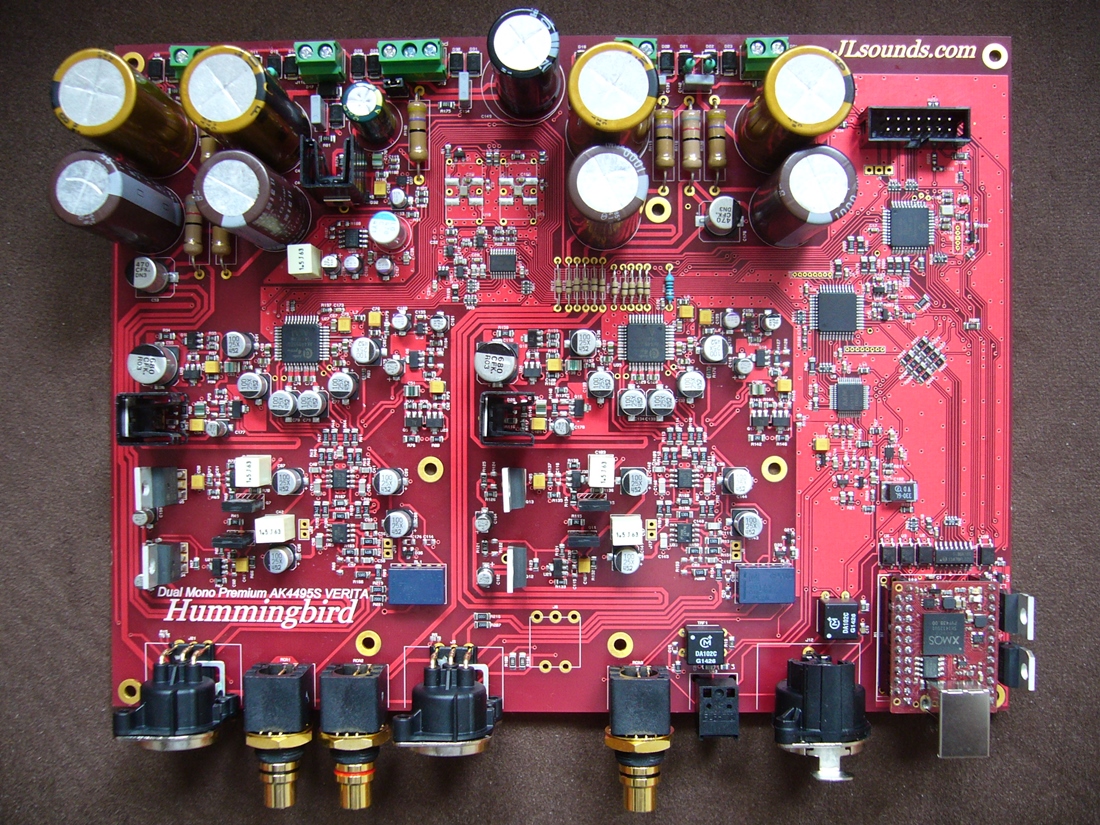

Hummingbird Verita Dual Mono AK 4495S
Specifications - USB (XMOS based) input: up to 384kHz 32 bit, up to DSD128 - S/PDIF input up to 192kHz, 24 bit - Optical input up to 192kHz, 24 bit - AES/EBU input up to 192kHz, 24 bit - Outputs: RCA (Single Ended) & XLR (Balanced) All available features of the DAC are accessible via indicator board / IR remote control - One can learn any universal remote control, which supports RC-5 code - 5 different sonic filters - DSD mode - volume bypass and normal path - 5 different sound quality settings - Volume control - Phase inverting - De-emphasis Realization - Two AK4495S DAC chips are used in a Dual Mono configuration
- Discrete power supplies - one per channel - Pre-regulator / LDO for digital circuit - NDK NZ2520SD oscillators, optionally Crystek CCHD 957’s can be used - ADM7150 LDO is used for oscillators - All inputs are Galvanically Isolated - To power this board one will need three transformers: 2x22V and 1x12V - Dimensions: (LxWxH): 23.0 x 16.5 x 4.8 cm |
